BYD SHARK 6
HALO XL
DOUBLE CAB
The certified HALO rollover structure engineered for the 2018 to 2026 RAM 1500, 2500 Double Cab. A roof-mounted high-strength steel hoop works with internal B-pillar reinforcement plates to distribute rollover loads and keep the occupant survival space intact.

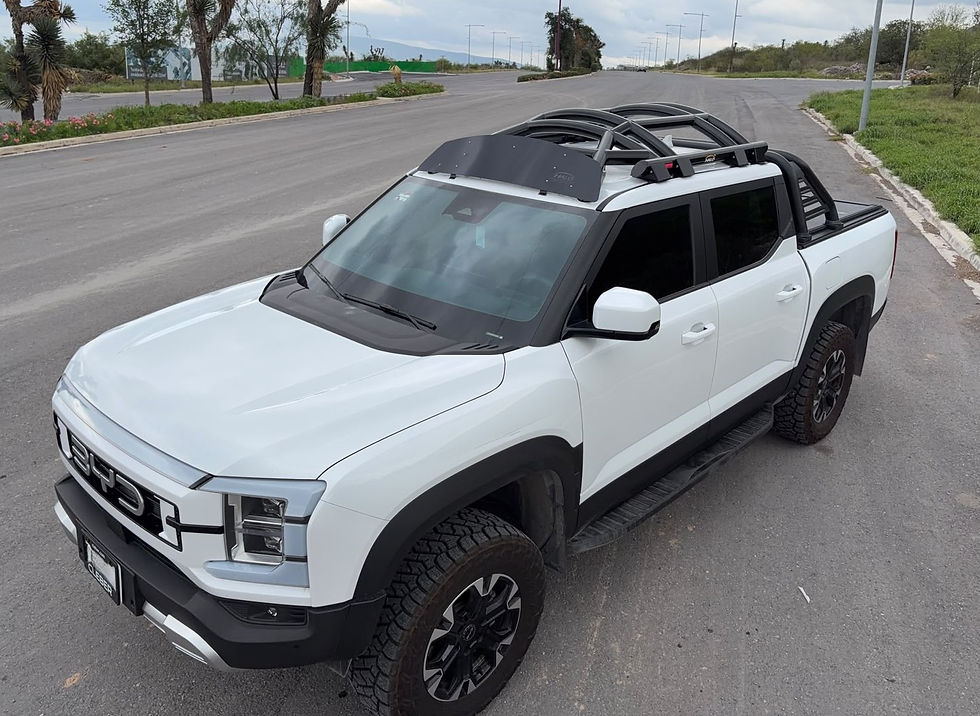

HALO ROPS BYD SHARK 6 HBD6 (2)

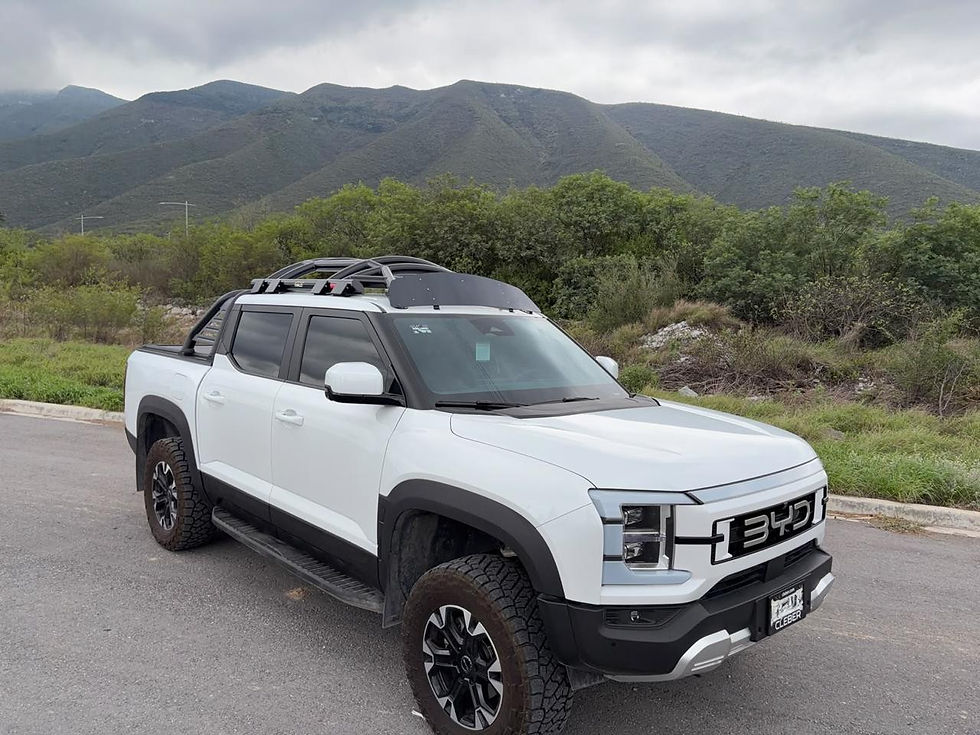

HALO ROPS BYD SHARK 6 HBD6 (3)
HALO ROPS BYD SHARK 6 HBD6 (1)
HALO ROPS BYD SHARK 6 HBD6 (2)
3x
STRONGER ROOF
80+
NON-INJURY ROLLOVERS
100-160 kg
ADDED MASS
ISO 3471
CERTIFIED ROPS STANDARD
SAFETY BY DESIGN
BUILT TO KEEP THE ROOF UP
AND AWAY FROM OCCUPANTS
.png){kind=small}
HIGH-STRENGTH STEEL
Geometrically optimized tube structure. Standard powder-coated finish included; weather-resistant e-coating available for harsh mine environments.
.png){kind=small}
DISTRIBUTES LOADS
Spreads rollover force across the vehicle's vertical pillars and roof, drawing on internal B-pillar reinforcement plates.
.png){kind=small}
NO MODIFIED CG
The HALO doesn't affect the center of gravity or fuel efficiency — and adds no reduction in payload capacity, with nothing placed in the load area.
.png){kind=small}
NO OEM INTERFERENCE
No interference with any OEM safety systems. All internal components sit under the vehicle trim — not seen from inside the cabin.
TECHNICAL SPECIFICATIONS
HBD6AKIT AT A GLANCE
KIT NUMBER
VEHICLE
MODEL YEARS
PLATFORM CLASS
STRUCTURE MATERIAL
FINISH
HBD6AKIT
BYD SHARK 6
2026 +
HALO XL (2.6 to 3.5 tons)
High-strength steel tube
Powder coating, E-coating avail.
STRUCTURE LENGTH
STRUCTURE WIDTH
STRUCTURE HEIGHT
PRODUCT WEIGHT
SHIPPING BOX WEIGHT
PALLET BOX WEIGHT
50 in / 1278 mm
44 in / 1128 mm
9 in / 240 mm
330 lbs / 150 kg
To confirm
To confirm
COMPLIANCE & TESTING
ROOF CRUSH RESISTANCE (SWR)
ROPS STANDARD
FMVSS 216 - PASS, >6X
ISO 3471 - PASS
AFRICA COMPLIANCE
MANUFACTURING / PATENT
SANS 1563 - PASS
ISO 9001:2015 - PTO #7717492
HOW THE HALO WORKS
CHANGING THE ROLLING GEOMETRY
Maintains the roll radius. The patented external roll hoop keeps the vehicle's center of gravity on the major radius, allowing the body to roll smoothly instead of collapsing on the trailing corner.
Distributes roof loads. Force is spread across the roof surface for smooth, even ground loading rather than a single crush point.
Minimizes intrusion. Keeps roof intrusion and speed low at the A and B pillars — protecting the occupant survival space.
2.34
6.13
SWR WITHOUT HALO
SWR WITHOUT HALO
Strength-to-Weight Ratio under FMVSS No. 216 roof crush resistance — Pass, >6× SWR (3× stronger than the unprotected roof).
